Wear Resistant OEM Tungsten Carbide Bit Inserts Button For Oil Gas Drilling

Ask Lasest Price
Brand Name :	ZONCO
Model Number :	Customized
Certification :	ISO9001:2015
Price :	negotiable
Payment Terms :	L/C, T/T,
Supply Ability :	10000 piece/pieces per month
Delivery Time :	30-35 working days

Add to Cart

Product Details
Company Profile

Wear Resistant OEM Tungsten Carbide Bit Inserts Button For Oil Gas Drilling

Wear-resistant OEM Tungsten Carbide Bit Inserts Button for Oil Gas Drilling

Tungsten carbide for drilling MWD/LWD includes two types:

1. Both the main body and the threaded part are made of tungsten carbide,which is called the overall hard alloy main valve head.

2. The main body is tungsten carbide and the threader part is made of stainless steel(such as stainless steel 304,etc) which is called a welded main valve head.

Features: high hardness,wear resistance,corrosion resistance,etc

Size:28.5,27.6,etc

Tungsten carbide for drilling MWD/LWD type:welded main valve head,solid carbide main valve head,rotor.

Various petrochemical industry industrial valves and special rotor are used in harsh environments and require high temperature and corrosion resistant environments.

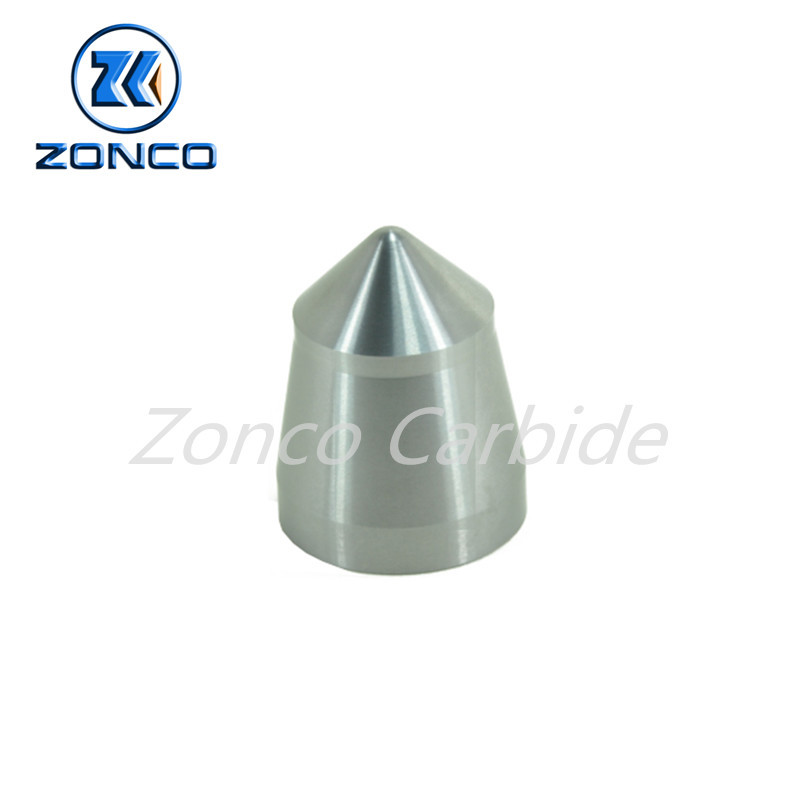

Products show

Wear Resistant OEM Tungsten Carbide Bit Inserts Button For Oil Gas Drilling

Common tungsten carbide grades

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade	WC%	Co/Ni %	Physical and mechanical properties			Grain size (μm)	Recommended application
Grade	WC%	Co/Ni %	Density (g/cm3)	TRS (N/mm²)	Hardness (HRA)	Grain size (μm)	Recommended application
ZG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06	94	6	14.8-15.1	2500	90.0	1.2	Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X	94	6	14.8-15.1	2400	91.5	1.0	Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
ZG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2	90	10	14.3-14.6	3800	91.7	0.7	Good general performance, suitable for casing and oil nozzle products
ZG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
ZG15X	85	15	13.8-14.2	4500	89.0	0.7	Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
ZN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
ZN11	89	11	14.0-14.3	2600	88.0	1.2
