PDC Mud Motor Radial Bearing Radial Tungsten Carbide Bearings
| Product Name | PDC bearing Diamond bearing PDC Thrust bearing |
| Brand | Zonco |
| Material | 100% Virgin Steel/Tungsten carbide |
| Feature | High Hardness,High wear resistance,High corrosion resistance,Longer
service life |
| MOQ | 1 Piece |
PDC bearing introduction:
PDC and TC (Tungsten carbide) Radial Bearing is used as
antifriction bearing for downhole motor, which is widely used in
oilfield service companies & downhole motor factories. We have
three different types includes PDC radial bearing,PDC thrust
bearing,Tungsten Carbide Tile Bearing,Tungsten Carbide Grain
Bearing and Tungsten Carbide Disc Bearing,from size 54 to size 286
for your choice (a total of 14 size).
Polycrystalline Diamond (PDC) radial bearings are comprised of a series of PDC inserts assembled (usually by brazing) in carrier rings. A typical
PDC radial bearing set includes a rotating and stationary bearing ring.
These two rings oppose each other with the PDC surface on the inside diameter of one ring in direct contact with
the PDC surface on the outside diameter of the mating ring. PDC Bearings prides itself in its ability to precisely shape
polycrystalline diamond. This has allowed Bearings to provide PDC radial bearings that have accurate diameters, tight clearance
tolerances, and ultra-fine surface finishes.

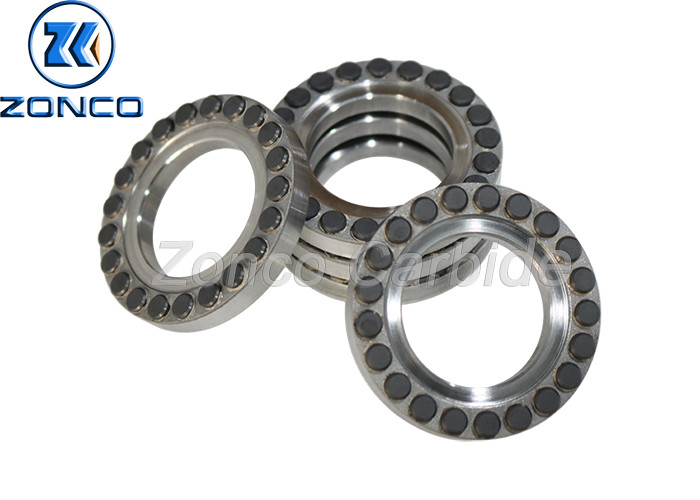

Products show
Our PDC and TC (Tungsten carbide) Radial Bearing advatages are as
the following:
1) Highly resistant to abrasion, erosion, corrosion, and mechanical
failure
2) Extremely resistant to chipping, cracking, and flaking which are
inherent problems in cladding or welded overlay processes
3) High heat conductivity eliminates thermal cracking
4) Proprietary design eliminates catastrophic downhole radial
bearing failure
5) Carbide tile and matrix design ensures extended life compared to
cladding or welded overlay designs
6) Inner and outer components can be reconditioned.
7) The hardness of body surface can reach 30-37 HRC.
