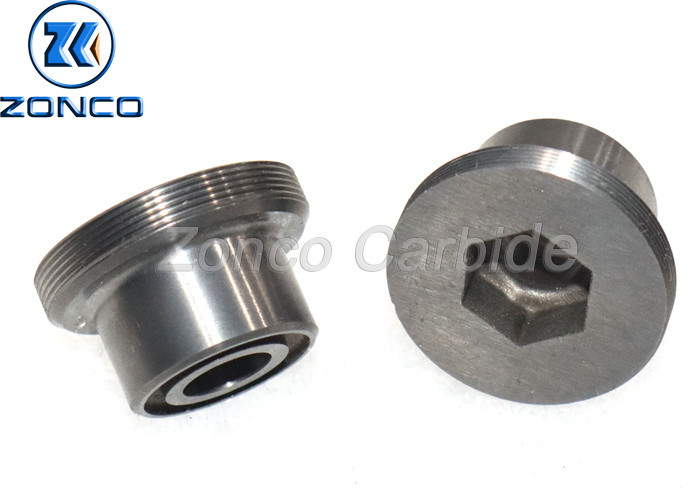

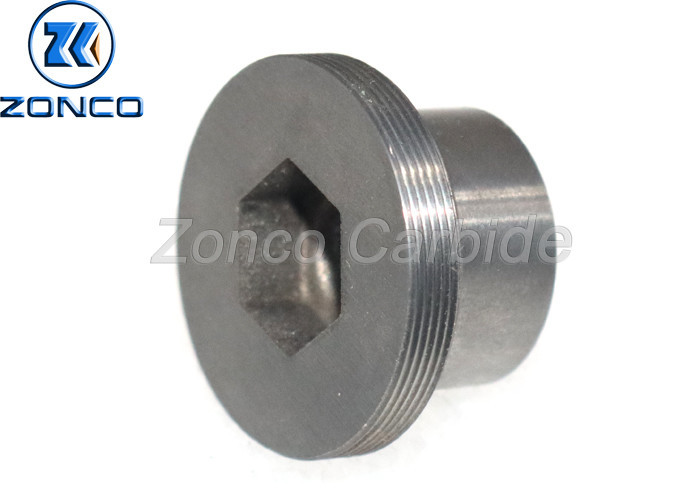

100% Tungsten Carbide Oil Drilling Bit Nozzle Cemented Carbide Wear
Parts High Precision
Product description of tungsten carbide nozzle:
Tungsten carbide nozzle, made of high grade tungsten carbide, is
one of the spray nozzles. Another way of saying, tungsten carbide
nozzles are usually used to sandblasting. Customers also called
tungsten carbide sandblasting nozzles. On machining tungsten
carbide spray nozzle, we do the precision grinding and surface
treatment to achieve standard size or customer request. There is a
scientific curvature radius design in the both entrance. This
design can ensure matter smooth that pass transit of the thread.
Due to the overall materials processing, and no elevation in the
bore, the phenomenon of easy-bending and plugging has been improved
comparing with other nozzle. tungsten carbide nozzle. Tungsten
carbide sandblasting nozzles are manufactured from hot pressing
with straight bore and venturi bore type. Due to its hardness, low
density and excellent wear and anti-corrosion, Tungsten carbide
sandblasting nozzle has been widely used in sandblasting and shot
peening equipment, offering a long life with optimum air and
abrasive use. We hold immense expertise in offering a
precision-engineered array of Tungsten Carbide Nozzles in different
sizes, grades and specifications. Our patrons widely appreciate our
offered tungsten nozzles as these are resistance against corrosion,
have sturdy construction and need less maintenance. Moreover, we
provide these tungsten nozzles as per the specifications detailed
by patrons. To ensure the presence of above named features in our
offered a tungsten nozzles, we make use of good quality raw
material in the manufacturing process. For the varied requirements
of our clients, we are engaged in manufacturing a wide range of
Tungsten Carbide Nozzles. These products are extremely rugged in
state and ensure longer functional life. All these products are
easy to install and needs low maintenance. These products are
available in different sizes and specifications.
Product specifications of tungsten carbide nozzle:
Material: Tungsten carbide
Sizes: As per requirement
Grade: YG6, YG8 etc
Surface: polished or blank
Thickness: 8-30mm
Diameter: 25-500mm
Length: 100-2000mm
Appearance: silver or gray metal luster
Density: 80-95 HRA
Quality standard: ISO9001:2008
Supply state: sintering or processing
Application : wide applications in many industrial sectors such as
Paper & Pulp, Tyre Sector, Oil & Gas, Chemical, Petrochemical,
Textile, Rubber, Metallurgy, Marine, Power Plant etc.
Material characteristics:
The non-bonding phase nano cemented carbide material is developed
for working conditions that require high wear resistance and
corrosion resistance. By using the production technology of nano
cemented carbide, the bending strength of the material can be
improved. Therefore, products made from it can improve its
resistance to damage.
Common alloy grades, physical and mechanical properties, and
recommended applications
| Grade | Physical and mechanical properties |
| density(g/cm3) | Flexural strength(N/mm2) | hardness(HRA) |
| ZG01 | 15.3-15.5 | 1200 | 95.5 |
| ZG06 | 14.8-15.1 | 2000 | 90.0 |
| ZG6X | 14.8-15.1 | 1860 | 91.8 |
| ZG6A | 14.8-15.1 | 2000 | 93.2 |
| ZG08 | 14.6-14.9 | 2200 | 89.0 |
| ZG11 | 14.3-14.7 | 2600 | 88.5 |
| ZG12X | 14.2-14.5 | 2850 | 89.5 |
| ZG15 | 13.8-14.2 | 3000 | 86.5 |
| ZG10.2 | 14.3-14.6 | 3500 | 91.5 |
| ZN06 | 14.5-14.9 | 2000 | 90.0 |
| ZN09 | 14.3-14.6 | 2300 | 89.0 |
| ZN11 | 14.0-14.3 | 2600 | 88.0 |
Application fields:
ZONCO provides cost-effective wear-resistant, erosion-resistant,
high-temperature and high-pressure parts for oil and gas, chemical,
pump and valve, coal chemical, automotive, solar and other
industries.
Advantages:
① Advanced process design
② Specialized in production
③ Unique material properties
④ Personalized customization
⑤ Whole process quality control system
⑥ Strong supply ability guaranteed
