OEM Custom Oscillating Valve Assy and stationary Valve Assy for
Hydraulic Oscillator Downhole Tools

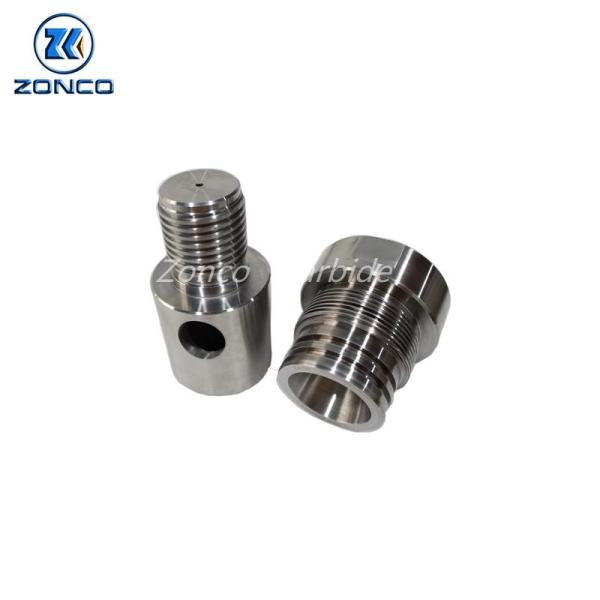

These two products are our hot sale products---Stationary Valve Assy and Oscillating valve
Assy, it is made from alloy Steel and tungsten carbide. Materials Grade will be recommend according to customer's working condition. They are both used in hydraulic oscillators drilling tools
together. Its excellent material properties and design have greatly
improved drilling efficiency and cost savings. The common specifications we have made are 2.87”, 4.75”,6.75” and
8.00”. We can also customize production according to customer’s
drawing and spec provided.
Company Introduction:
Zonco has been specialized in customizing various kinds of non-standard
tungsten carbide wear resistant components for more than 10 years.Our products and technologies have been widely applied in the fields of oil & gas (such as downhole tools(dill bits, chrismas tree, RSS, PDM), wellhead
equipment, subsurface valves, MWD/LWD Tools) and chemical engineering, subsea, valve, pump, mechanical equipment. Mainly used in harsh operating conditions include severe
abrasion, erosion, corrosion, high temperature, high pressure and
strong impact. we are able to manufacturing all kinds of wear resistance valve
parts based on customer's drawing and material requirement, support
hardfacing process based on customer's technique requirement. since most of our products are customized and not suitable to show
for other customer, welcome to contact us for OEM service.
Our main products Types:
1. Carbide nozzles for Oil Drill Bits, nozzle sleeve, bushing.
2. Carbide parts for MWD/LWD tools, such as
rotor,stator,liner,sleeve, plate,retainer,shroud etc.
3. Carbide Parts for downhole tools,such as torque impactor,
centralizer, fracturing nozzle, stationary valve Assy and OSC valve
Assy in Hydraulic oscillator etc.
4. Carbide Radial Bearing, such as TC bearing, PDC bearing.
5. Valve Trim, such as valve plug, stems, seats, cage, choke
bean,choke stem.
6. Steel bonded tungsten carbide Assy and Surface Technology on
Steels (PTA,HVOF, Boriding).
7. Other customized carbide parts based on client's drawings etc.
Our Main Advantages:
1. 100% virgin material.
2. Competitive prices with 10-30% saved or more.
3. High quality standards and Strict products inspection.
4. Flexible production management with shorter lead time.
5. Quick and professional service and technical support.
6. Customized service based on customer's drawings or samples.
Zonco Common Tungsten Carbide Grades, Ghysical Mechanical
Properties:
1. Cobalt Binder Grades
| Grade | WC% | Co% | | Grain size (μm) |
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) |
| YG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 0.8-1.2 |
| YG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 |
| YG08 | 92 | 8 | 14.6-14.9 | 2700 | 89 | 1.2-1.6 |
| YG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 |
| YG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 |
| YG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 |
| YG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 |
| YG20 | 80 | 20 | 13.4-13.8 | 3100 | 85 | 1.2-1.6 |
2. Nickel Binder Grades
| Grade | WC% | Ni% | Physical and mechanical properties | Grain size (μm) |
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) |
| YN6 | 94 | 6 | 14.5-14.9 | 2000 | 90 | 1.2-1.6 |
| YN9 | 91 | 9 | 14.3-14.6 | 2300 | 89 | 1.2-1.6 |
| YN11 | 89 | 11 | 14.0-14.3 | 2600 | 88 | 1.2-1.6 |
Our material engineers have developed more than 15 material grades. If the listed grades above
are not meet your requirement,
we are able to recommend or develop new grade by customers' requirements.
