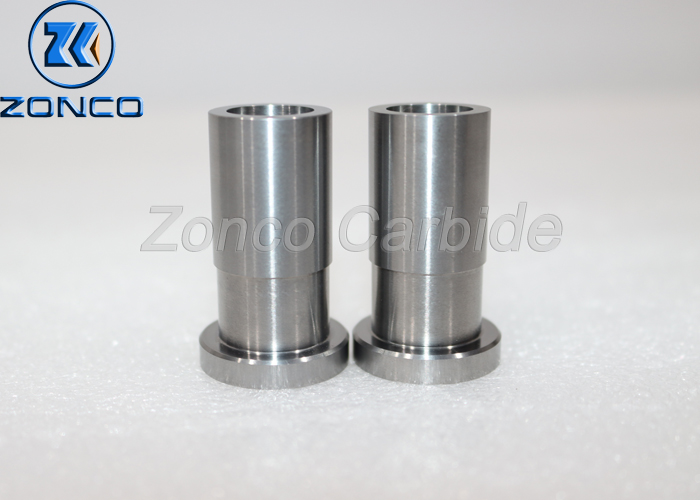

    YG10 Tungsten Carbide Components Straight Bearing Shaft Sleeve For Construction Works

    Ask Lasest Price
    Brand Name : ZONCO
    Model Number : Customized
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T,
    Supply Ability : 10000 piece/pieces per month
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

    YG10 Tungsten Carbide Components Straight Bearing Shaft Sleeve For Construction Works

    YG10 Tungsten Carbide Bearing Shaft Straight Sleeves For Construction Works , Energy & Mining


    Quick Details


    Application: Oil and gas industryModel Type:VariousTrade Term: CIF,EXW,FOB
    Grade: YG10Virgin Material:100%Surface: Ground or Blanks
    Trial Order: AcceptableOEM Service: AcceptableDelivery Time: Shipped in 30 days after payment

    Product Description


    Tungsten carbide shaft sleeve is widely used in petrochemical industry for submerged oil pump, slurry pump, water pump, Centrifugal Pump,etc., which is a device to protect a class of components. It is in the actual work and the role and purpose of its application environment have a great relationship. Valve applications, bushings be installed in the valve stem cap trap, in order to reduce the valve leakage, to seal; bearing applications, the use of bush to reduce wear between the bearing and the shaft seat, avoid the gap between the shaft and the hole increases and so on.


    The feature of tungsten carbide bushes


    1. High hard resistance, wear resistance and High bending strength


    2. High temperature resistant


    3. Strong corrosion resistance


    4. Pressured resistance


    5. Without smell , non-toxic, tasteless, non-rust characteristics


    6. High accuracy


    7. Perfect finish, precise dimension, durability


    8. Good compression property


    Specification


    Grade
    Chemical composition
    Grain size (μm)
    Density (g/cm3)
    Hardness (HRA)
    T.R.S. (N/mm2)
    YG6
    94%WC + 6%Co
    ≥1.0
    14.9
    91
    1600
    YG8
    92%WC + 8%Co
    1.2-1.6
    14.7
    90
    2000
    YG10
    90%WC + 10%Co
    0.8-1.6
    14.5
    89
    2100
    YG11
    89%WC + 11%Co
    0.8-1.6
    14.4
    88
    2150
    YG13
    87%WC + 13%Co
    1.0-1.2
    14.3
    88
    2180
    YG15
    85%WC + 15%Co
    0.8-1.6
    14
    86.5
    2280
    YG20
    80%WC + 20%Co
    1.2-1.6
    13.5
    85.5
    2400

    Products show





    Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
    GradeWC%Co/Ni %Physical and mechanical propertiesGrain size (μm)Recommended application
    Density (g/cm3)TRS (N/mm2)Hardness (HRA)
    ZG01100015.3-15.5120095.50.3Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
    ZG04X96415.0-15.2160092.80.8-1.0Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
    ZG0694614.8-15.1250090.01.2Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
    ZG06X94614.8-15.1240091.51.0Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
    ZG06A94614.8-15.1215092.50.6-0.8
    ZG0892814.6-14.9270089.01.2-1.6Good general performance, used for general wear parts, molds, general tools, etc.
    ZG10.2901014.3-14.6380091.70.7Good general performance, suitable for casing and oil nozzle products
    ZG11891114.3-14.7280088.51.2-1.6Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
    ZG12X881214.2-14.5300089.51.0-1.2Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
    ZG15851513.8-14.2300086.51.2-1.6
    ZG15X851513.8-14.2450089.00.7Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
    ZG20802013.4-13.8310085.01.0Excellent wear resistance and toughness
    ZN0694614.5-14.9200090.01.2Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
    ZN0991914.3-14.6230089.01.2-1.6
    ZN11891114.0-14.3260088.01.2
