Precision Tungsten Carbide Valve Seats / Ball Valve Seat Good Temperature Resistance

Zhuzhou Zonco Sinotech Wear-resistant Material Co., Ltd.
Contact Now
    Buy cheap Precision Tungsten Carbide Valve Seats / Ball Valve Seat Good Temperature Resistance from wholesalers

    Buy cheap Precision Tungsten Carbide Valve Seats / Ball Valve Seat Good Temperature Resistance from wholesalers
    • Buy cheap Precision Tungsten Carbide Valve Seats / Ball Valve Seat Good Temperature Resistance from wholesalers

    Precision Tungsten Carbide Valve Seats / Ball Valve Seat Good Temperature Resistance

    Ask Lasest Price
    Brand Name : ZONCO
    Model Number : Customized
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T,
    Supply Ability : 50000piece per month
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

    Precision Tungsten Carbide Valve Seats / Ball Valve Seat Good Temperature Resistance

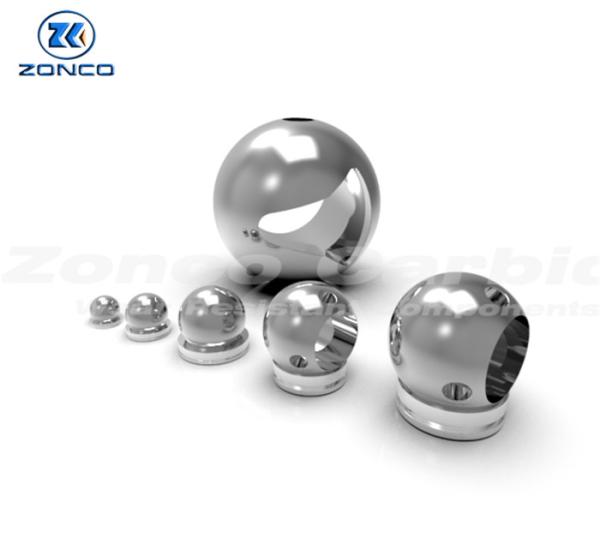

    Precision Tungsten Carbide Seat for Valve Ball


    Quick Detail


    Application: valve ball, screw ballModel Type:VariousTrade term: CIF,EXW,FOB
    Grade: YG6, YG6X, YG8Dimensions: 0.5mm-80mmSurface: Ground or Blanks
    Trial order: AcceptableOEM Service: AcceptableDelivery Time: Shipped in 3-15 days after payment

    Product Description


    Specification:


    1. High strength, high wear resistance, high precision, good temperature resistance and good corrosion resistance.


    2. Mainly used for the sealing of valves of oil pumps in petroleum industry`s containing wells, viscous oil wells, sea oil wells and high pressure sulfur resistant oil wells, etc.


    3. Balls and seats are used with compatible cemented carbide valve seats.


    4. The finished surface, tolerance standard have reached the standards of the machine industry: G5, G10, G16, G40 and G100 of JB/T 9145-1999.


    5. Precision machined cemented carbide balls of other grades and specifications are also available based on customers’ demands.


    6. Compatible high precision valve seats can also be made.


    Detailed Image





    Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
    GradeWC%Co/Ni %Physical and mechanical propertiesGrain size (μm)Recommended application
    Density (g/cm3)TRS (N/mm2)Hardness (HRA)
    ZG01100015.3-15.5120095.50.3Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
    ZG04X96415.0-15.2160092.80.8-1.0Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
    ZG0694614.8-15.1250090.01.2Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
    ZG06X94614.8-15.1240091.51.0Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
    ZG06A94614.8-15.1215092.50.6-0.8
    ZG0892814.6-14.9270089.01.2-1.6Good general performance, used for general wear parts, molds, general tools, etc.
    ZG10.2901014.3-14.6380091.70.7Good general performance, suitable for casing and oil nozzle products
    ZG11891114.3-14.7280088.51.2-1.6Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
    ZG12X881214.2-14.5300089.51.0-1.2Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
    ZG15851513.8-14.2300086.51.2-1.6
    ZG15X851513.8-14.2450089.00.7Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
    ZG20802013.4-13.8310085.01.0Excellent wear resistance and toughness
    ZN0694614.5-14.9200090.01.2Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
    ZN0991914.3-14.6230089.01.2-1.6
    ZN11891114.0-14.3260088.01.2
