YG8/YS2T/YN8 Grade Valve Trim Regulating Valve Stem Custom Made Wear Resistant

Product Categories

Tungsten Carbide Nozzle [47]
Drill Bit Nozzle [21]
Tungsten Carbide Wear Parts [145]
Threaded Nozzle [27]
TC Bearing [44]
PDC Bearing [38]
Tungsten Carbide Sleeve [47]
Valve Spare Parts [77]
Tungsten Carbide Sandblasting Nozzle [10]
Control Valve Components [80]
MWD Parts [86]
Choke Stem [30]
Carbide Wear Parts [11]

Zhuzhou Zonco Sinotech Wear-resistant Material Co., Ltd.

Contact Now

YN8 Grade Valve Trim Regulating Valve Stem Custom Made Wear Resistant

Ask Lasest Price
Brand Name :	ZONCO
Model Number :	Customized
Certification :	ISO9001:2015
Price :	Negotiable
Payment Terms :	L/C, T/T,
Supply Ability :	100000 piece/pieces per month
Delivery Time :	30-35 working days

Add to Cart

Product Details
Company Profile

YG8/YS2T/YN8 Grade Valve Trim Regulating Valve Stem Custom Made Wear Resistant

Regulating valve stem custom-made wear-resistant hard alloy valve core

Product Parameters

Grade:YG8/YS2T/YN8 Origin:Zhuzhou Hunan

Main metal content:99.9% Product name:tungsten carbide

Magazine content:0.01% Feature:Wear and corrosion resistance

Material:100% virgin raw material Specification:Processing

Product Performance

Carbide valve seats, due to their excellent high pressure resistance, wear resistance, corrosion resistance, and small friction coefficient, are widely used in harsh environments and greatly increase the service life of their equipment.

Common grade information

Grade	Hardness	Density	Flexural strength
YG8	89.5	14.65	2400
YN8	90	14.67	1800
YG11	88	14.45	2800
YG15	87	14	3000
YS2T	92	14.45	2806

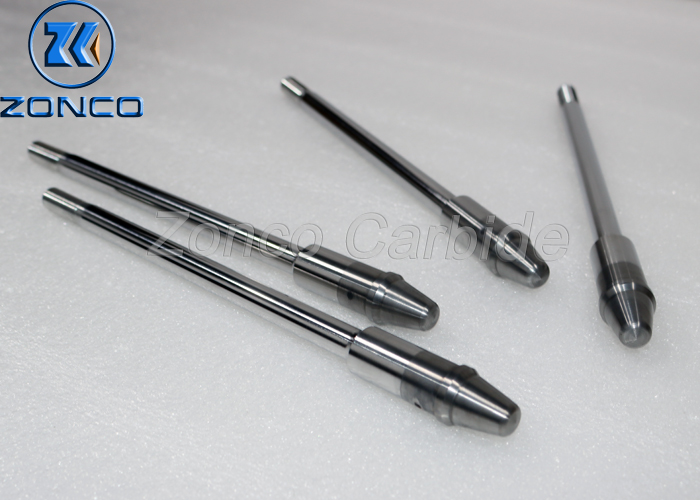

Product display

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade	WC%	Co/Ni %	Physical and mechanical properties			Grain size (μm)	Recommended application
Grade	WC%	Co/Ni %	Density (g/cm3)	TRS (N/mm²)	Hardness (HRA)	Grain size (μm)	Recommended application
ZG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06	94	6	14.8-15.1	2500	90.0	1.2	Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X	94	6	14.8-15.1	2400	91.5	1.0	Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
ZG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2	90	10	14.3-14.6	3800	91.7	0.7	Good general performance, suitable for casing and oil nozzle products
ZG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
ZG15X	85	15	13.8-14.2	4500	89.0	0.7	Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
ZN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
ZN11	89	11	14.0-14.3	2600	88.0	1.2
