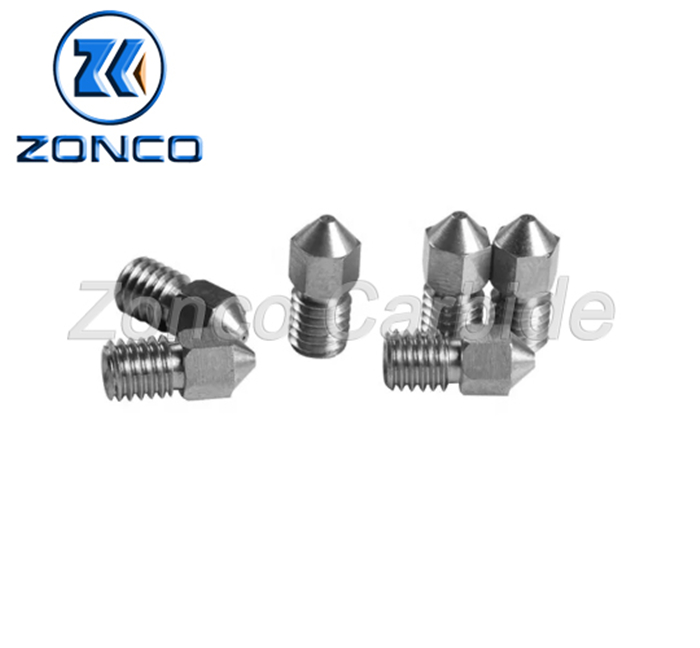

Tungsten Carbide 3D Printing Nozzle With M6 M8 Thread Used In 3D
Printer Hole Size 0.4 0.6 0.8mm
Product Description of tungsten carbide 3d printer nozzle
The wear resistance of tungsten carbide nozzles will ensure that
even the most fine hair can be printed. You can it print faster.
Because it means high thermal conductivity of tungsten carbide. The
nozzle lifetime is very long. Tungsten carbide will not soften at
high temperatures like hardened steel. And You use the nozzle
without worry about that. The high thermal conductivity and
optimized stable flow is maintained through the entire nozzle. It
solve customer problem that the nozzle will clog. Tungsten carbide
nozzle manufacturing cost is low than other material, and maintain
better flow and temperature stability at the nozzle tip.
Product name:Tungsten Carbide 3D Printing Nozzle
- Material:100% Virgin Tungsten Carbide
- Color:Silver
- Size: 0.4/0.6/0.8
- Certificate:ISO9001:2008
- Sample :Avaliable for testing
- Size :14mm in stocks ,Can be Customized
- Type :3D Printer Nozzles
- Grade : YG6, YG6X
- Feature:Long Life Low Cost
- Usage:Dust control,industrial cleaning,cooling
- Application:Washing & cleaning & sparying
- Spray pattern:Flat Fan Spray
Product detail of tungsten carbide 3d printer nozzle
| Product Name | Tungsten carbide 3d printer nozzle |
| Material | Virgin Raw Material |
| Grade | YG6/YG6X etc |
| Features | Alloy nozzle,full cone,stable property
performance,cleaning,sandblasting or gasoline spray,new model can
be designed |
| Specification | Various size and shape,accept customize according to your drawing |
| Surface | Polished or blank |
Product Advantage of tungsten carbide 3d printer nozzle
1.Energy efficient, High quality printing results
2. Calibration efforts are more stable.
3. No extreme tempering effect.
4. Our flattened nozzle tip doesn’t scratch gas beds.
5. This lowered the developing cost of the 3D Printer nozzle and
fast production .
6. It more reliable and grants better thermal conductivity
7. Made of a premium tungsten alloy which is generally used in the
plastics industry or for aerospace applications
Product Feature of tungsten carbide 3d printer nozzle
Nozzle is the final step in your typing system, the most important
part of your 3d printer. With plain plastic, any common metal can
easily hold up against the flow. Once we start using plastic
filaments with hard reinforcement fibers such as carbon and glass,
things start to get more complicated; these reinforcement materials
will scratch the inner wall of your nozzle orifice as they pass due
to the flow and pressure. Both glass and carbon are known to be
very hard, a lot harder than any metals, resulting in what is known
as abrasion inside your nozzle. That's a state of the art 3d
printer nozzle that offers good durability and performance for 3d
printer
Products show
Common alloy grates,ghysical mechanical properties and recommended
application
| Common Alloy Grades, Ghysical Mechanical Properties And Recommended
Application |
| Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application |
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) |
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with
certain anti-destructive ability |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and
wear-resistant parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for
wear-resistant parts that resist abrasion and high pressure. |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for
making non-standard structure components with higher wear
resistance. |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds,
general tools, etc. |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle
products |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength,
suitable for wear-resistant parts in the petroleum, chemical and
mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for
impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 |
| ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making
integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic
wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 |
