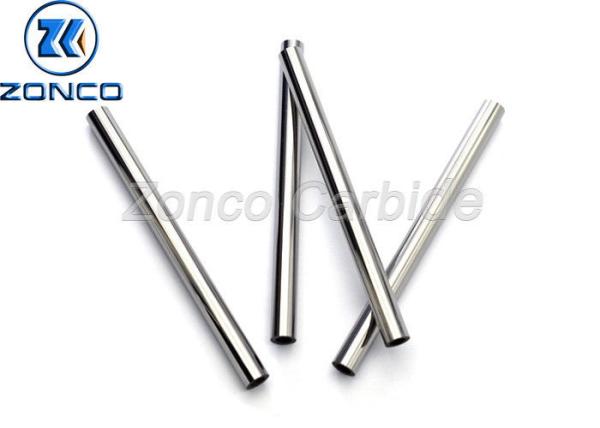

Corrosion Resistance Tungsten Carbide Rod HIP Sintering 95.5HRA
Hardness
Product specification of tungsten carbide rod:
Specification: Diameter:1.5 mm x 330mm
Surface Condition: Sintered blank
Chemical Composition: WC :88.5% + Co: 10% + Others: 1.5%
Density: 14.2~14.6 g/cm3
Hardness: HRA91.5.
T.R.S.: 3200N/mm2
Recommended Grade: YG6, YG8, YG6X, YG012, YG013, YG8A etc.
Surface: stock in blank, center less blank and polished form.
Feature: Easy operation, long lifetime.
Product application of tungsten carbide rod:
Used in welding/making the drill bits/endmills/reamers .automobile
special cutters, printed circuit board special cutters, engine
special cutters, Horologe processing special cutters, integral
vertical milling cutter, graver and more.
Besides, they can but used for making of cemented carbide stamping
head, Core bar and perforation tools.
Product feature of tungsten carbide rod:
High Transverse Rupture strength
Ultrafine/Submicron Grain Size
High Hardness
High Density
High hardness and abrasion resistance, suitable for wear hinging
and die locator pins, cutting and drilling tools, and high wear
applications with minimal shock conditions
Material characteristics:
The non-bonding phase nano cemented carbide material is developed
for working conditions that require high wear resistance and
corrosion resistance. By using the production technology of nano
cemented carbide, the bending strength of the material can be
improved. Therefore, products made from it can improve its
resistance to damage.
Common alloy grades, physical and mechanical properties, and
recommended applications
| Grade | Physical and mechanical properties |
| density(g/cm3) | Flexural strength(N/mm2) | hardness(HRA) |
| ZG01 | 15.3-15.5 | 1200 | 95.5 |
| ZG06 | 14.8-15.1 | 2000 | 90.0 |
| ZG6X | 14.8-15.1 | 1860 | 91.8 |
| ZG6A | 14.8-15.1 | 2000 | 93.2 |
| ZG08 | 14.6-14.9 | 2200 | 89.0 |
| ZG11 | 14.3-14.7 | 2600 | 88.5 |
| ZG12X | 14.2-14.5 | 2850 | 89.5 |
| ZG15 | 13.8-14.2 | 3000 | 86.5 |
| ZG10.2 | 14.3-14.6 | 3500 | 91.5 |
| ZN06 | 14.5-14.9 | 2000 | 90.0 |
| ZN09 | 14.3-14.6 | 2300 | 89.0 |
| ZN11 | 14.0-14.3 | 2600 | 88.0 |
pictures:
Advantages:
① Advanced process design
② Specialized in production
③ Unique material properties
④ Personalized customization
⑤ Whole process quality control system
⑥ Strong supply ability guaranteed
