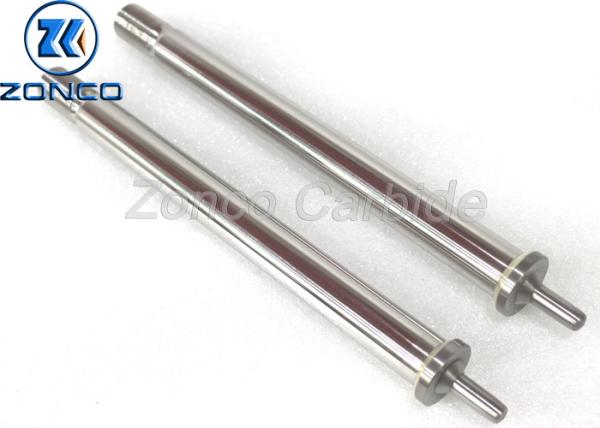

    Wear Resistance Good Sealing Carbide Tip YG6/YG8 Choke Stem

    Ask Lasest Price
    Brand Name : ZONCO
    Model Number : Customized
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, T/T,
    Supply Ability : 10000 piece/pieces per month
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

    Wear Resistance Good Sealing Carbide Tip YG6/YG8 Choke Stem

    Good Sealing Carbide Tip Choke Stem For Flow Control System With Good Wear Resistance


    A valve is a mechanical device that controls the flow of fluid and pressure within a system or process. A valve controls system or process fluid flow and pressure by performing any of the Following functions.

    a) Stopping and starting fluid flow

    b) Varying (throttling) the amount of fluid flow

    c) Controlling the direction of fluid flow

    d) Regulating downstream system or process pressure

    e) Relieving component or piping over pressure

    There are many valve designs and types that satisfy one or more of the functions identified above. A multitude of valve types and designs safely accommodate a wide variety of industrial applications.

    Products show



    Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
    GradeWC%Co/Ni %Physical and mechanical propertiesGrain size (μm)Recommended application
    Density (g/cm3)TRS (N/mm2)Hardness (HRA)
    ZG01100015.3-15.5120095.50.3Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
    ZG04X96415.0-15.2160092.80.8-1.0Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
    ZG0694614.8-15.1250090.01.2Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
    ZG06X94614.8-15.1240091.51.0Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
    ZG06A94614.8-15.1215092.50.6-0.8
    ZG0892814.6-14.9270089.01.2-1.6Good general performance, used for general wear parts, molds, general tools, etc.
    ZG10.2901014.3-14.6380091.70.7Good general performance, suitable for casing and oil nozzle products
    ZG11891114.3-14.7280088.51.2-1.6Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
    ZG12X881214.2-14.5300089.51.0-1.2Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
    ZG15851513.8-14.2300086.51.2-1.6
    ZG15X851513.8-14.2450089.00.7Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
    ZG20802013.4-13.8310085.01.0Excellent wear resistance and toughness
    ZN0694614.5-14.9200090.01.2Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
    ZN0991914.3-14.6230089.01.2-1.6
    ZN11891114.0-14.3260088.01.2
