Tungsten Carbide Bushing Wear Resistant General Tools

Ask Lasest Price
Brand Name :	ZONCO
Model Number :	Customized
Certification :	ISO9001:2015
Price :	Negotiable
Payment Terms :	L/C, T/T,
Supply Ability :	1000 piece/pieces per month
Delivery Time :	30-35 working days

Add to Cart

Product Details
Company Profile

Tungsten Carbide Bushing Wear Resistant General Tools

Tungsten Carbide Bushing With Excellent Performance And Good Wear Resistance

Application:

Tungsten carbide shaft sleeves are often used in water pump,oil pump and other pumps,especially used for high pressure or corrosion resistance pumps.Flow restrictors,servo seat and components are made of tungsten carbide which are widely used in oilfield.

Grades recommended

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade	WC%	Co/Ni %	Physical and mechanical properties			Grain size (μm)	Recommended application
Grade	WC%	Co/Ni %	Density (g/cm3)	TRS (N/mm²)	Hardness (HRA)	Grain size (μm)	Recommended application
ZG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06	94	6	14.8-15.1	2500	90.0	1.2	Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X	94	6	14.8-15.1	2400	91.5	1.0	Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
ZG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2	90	10	14.3-14.6	3800	91.7	0.7	Good general performance, suitable for casing and oil nozzle products
ZG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
ZG15X	85	15	13.8-14.2	4500	89.0	0.7	Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
ZN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
ZN11	89	11	14.0-14.3	2600	88.0	1.2

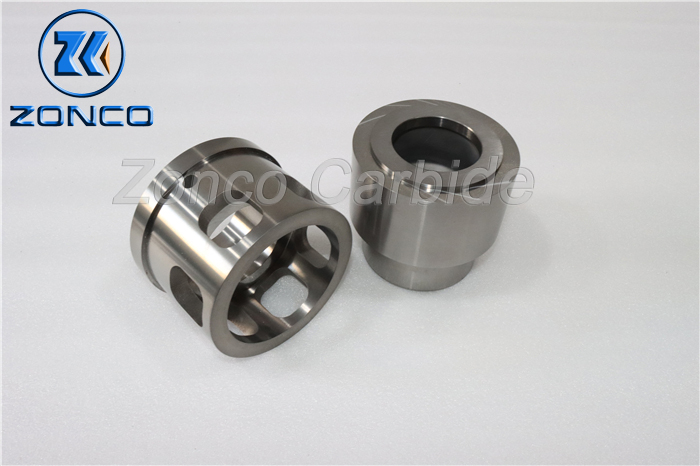

Products show

Carbide drill bushing for sealing

100% raw material
trial order accept
finished and blanks available
professional suggest

Product Tags:

ZG06 Tungsten Carbide Bushing

HRA90.0 Tungsten Carbide Bushing

94% WC Tungsten Carbide Sleeve

Tungsten Carbide Bushing Wear Resistant General Tools
